FIRESTOP AND FIRE PROTECTION SYSTEM

Complaince BD is a reliable supplier of comprehensive fire protection system solution around the world. We provide a complete range of fire products for one-stop solution to optimize customers demand and lower customers cost, including fire sprinkler systemfire hydrant systemfire alarm system, and fire suppression system.

With world-class manufacturers, globe certificates approval (UL, FM, LPCB, BSI, VdS, etc.), warehouses close to seaport, customers from over 30 countries benefit from our quality-based product, fast scheduling and competitive price.

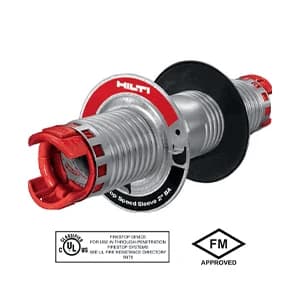

CP 653 Firestop speed sleeve


AttributeValue
CertificateUL Listed/ FM Approved
OD (device only)4.3″ (110 mm)
OD (flange)6.7″ (170 mm)
ID3.6″ (92 mm)
Total length12.4″ (315 mm)
Recommended Hole Size4.5″ (114 mm)
Weight (device and flanges)2.6 lbs
Temperature resistance-22°F to 212°F (-6°C to 100°C)
Intumescent activationApprox. 320°F (160°C)
Expansion ratio (unrestricted)0.06944444
Mold and Mildew (ASTMG-21)Mold and mildew resistant
MetalSteel with zinc coating
PlasticABS
FabricGlass-fiber
ApprovalsCalifornia State Fire Marshal – No. 4485-1200: 138
Tested in accordance withUL 1479, ASTM E 814, CAN/ULC-S115, UL 2043, ASTM G-21

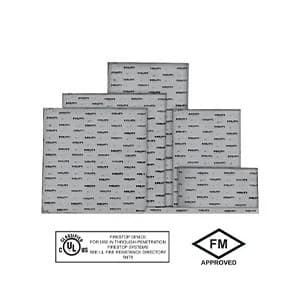

Firestop Composite Sheet CFS-COS


AttributeValue
CertificateUL Listed/ FM Approved
Temperature resistance range-22 to 118 °F
Expansion ratio (unrestricted, up to)1:18
Surface burning characteristicsSmoke development: 20
UL 723 (ASTM E84)Flame spread: 5
Shelf lifeNot relevant
Storage and transportation temperature range-22 to 118 °F
ColorSilver
Acoustics performanceTest report available
Dimensions (LxWxH)36 x 36 x 0.15 in
IntumescentYes
Tested in accordance withUL 1479, ASTM E 814, CAN/ULC-S115, UL 2043, ASTM G-21

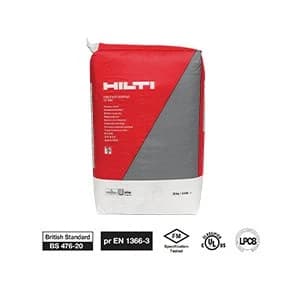

CP 636 Firestop Mortar


AttributeValue
CertificateBritish Standard, pr EN 1366-3, FM Approved, UL Listed, LPCB certified
Mix ratio2.5:1 (mortar to water by volume)
ColourGrey
Form removal (depending on consistency)Min 12 hours (walls)
Density of hardened mortar0.82 g/cm³
Compressive strength (after 28 days at 23°C)2.9 N/mm²
Shelf-life after production12 months (at 23°C in a dry place)

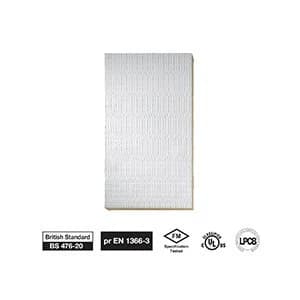

CP 670 Firestop board


AttributeValue
CertificateBritish Standard, pr EN 1366-3, FM Approved, UL Listed, LPCB certified
Chemical basis, CP 606Acrylic dispersion 310ml
CP 606 – ColourWhite
Curing rateApproximate 3mm in 3 days
CP 670 – ColourWhite
Curing rateApproximate 1mm in 1 day
CP 670 Content6kg
Dry film thickness0.7mm
ConsistencyCan be applied by paint brush
Storage/transport temperature-5°C to +30°C
Shelf life after production – GP 670 (stored in a dry place)12 months

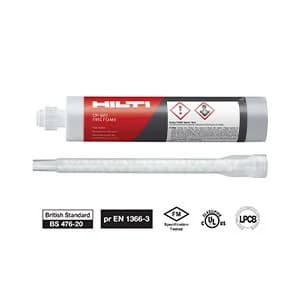

CP 620 Expanding Firestop Foam


AttributeValue
CertificateBritish Standard, pr EN 1366-3, FM Approved, UL Listed, LPCB certified
ColourRed
Storage/transport temperature+5°C to +25°C
CuringNon-tacky after: Approx. 35 s, Ready to cut after: Approx. 1-2 mins
Acoustic insulation (air-borne sound)59db, as per DIN4109
Shelf life after production9 months (at 20°C and stored in a dry place)

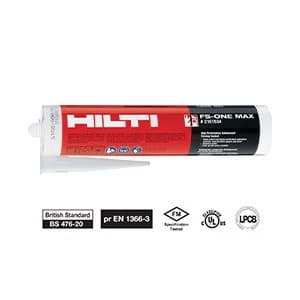

FS-ONE MAX Firestop intumescent sealant


AttributeValue
CertificateBritish Standard, pr EN 1366-3, FM Approved, UL Listed, LPCB certified
ColourRed
Skin-forming timeApprox. 20 min.
Curing rate4 mm in 3 days
Shelf-life after production9 months (at 20°C in a dry place)


CP 648-E firestop endless wrap strips


AttributeValue
CertificateZ-19.17-1612
Base MaterialsConcrete, Drywall, Masonry
Expansion temperature (approx.)210 °C
IntumescentYes
Storage and transportation temperature range-5 – 50 °C
Application temperature range-5 – 50 °C
Temperature resistance range-20 – 100 °C
LEED VOC3.1 g/I
Complementary productsCP 606, CFS-S ACR, CP 620, CP 636, CP 633 M10
Acoustic insulationYes
Expansion ratio (unrestricted, up to)1:19

CP 644 Firestop collars US


AttributeValue
CertificateBritish Standard & UL Listed
Description
Pipe outside dia (in.)Collar outside dia (in.)Collar Height (in.)No. of hooks and fasteners
8.810.06.910
10.012.49.112
Temperature resistance-40°F to 140°F (-40°C to 60°C)
Intumescent ActivationApprox. 392°F (200°C)
Expansion ratio (unrestricted)Up to 1:17
Tested in accordance withUL 1479, ASTM E 814, ASTM G21

CFS-SP WB Water-based acrylic sealant spray


AttributeValue
CertificateBritish Standard, pr EN 1366-3, FM Approved, UL Listed, LPCB certified
ColorRed
Chemical basisLatex based dispersion
Working time30-45 minutes
Curing time48 hours
Ph-valueApprox. 7.8
Movement capabilityApprox. 50%
Sound transmission classification (ASTM E 90-00)55
Shelf life12 months

CFS-SP SIL Silicone-based joint sealant spray


AttributeValue
CertificateW rated & FM Approved
DensityApprox. 11 lb/gal
ColorOff-white
Application temperature35°F to 104°F (1.5°C to 40°C)*
Temperature resistance-30°F to 248°F (-35°C to 120°C)
Storage temperature35°F to 77°F (1.5°C to 25°C)
ConsistencySprayable liquid
Chemical basisNeutral cross-linking silicone
PaintableNo
Mold and mildewClass 1 (ASTM G21-96)
Movement+/-12.5%
Packaging5 gal Pail (19 Liters)
Volume per unit1,153.3 in³
Rain resistance (ASTM D6904)Passed (2-hour rain resistance after 160 min. cure time)
Tack free time (ASTM C679)55 min at 73°F, 50% humidity
Curing timeApprox. 5 hours at 73°F, 50% humidity for 2 mm depth
Surface burning characteristics (ASTM E84)Flame spread: 0, Smoke development: 50
Sound transmission classification (ASTM E90)61 (per tested construction type)
Elongation at break>200%
VOC72 g/L
Shelf life12 months from date of manufacture
Tested in accordance withASTM E2307, ASTM E84, ASTM E90, CAN/ULC-S115

CP 680-P Cast-in firestop sleeve


ID

Footprint

Opening required thru metal deck
2″3-3/4″ x 4-1/2″3-1/2″ diameter
3″4-3/4″ x 5-5/8″4-1/2″ diameter
6″9″ x 9-1/2″7-1/2″ diameter
Expansion temperature392°F (200°C)
Expansion rate1:50 (unrestrained) 1:30 (Load expansion, Load = 20g/cm3)
Standard height 8″
Temperature resistanceMaximum 212°F (100°C)
Color CP 680-P: red CP 680-M: black CP 680-PX: red
Tested in accordance with UL 1479 • ASTM E 814 • ASTM G21 • CAN/ULC-S115

CP 601s Firestop silicone sealant


AttributeValue
CertificateBritish Standard, pr EN 1366-3, FM Approved, UL Listed, LPCB certified
Skin-forming timeApprox. 15 min.
Curing rateApprox. 2 mm in 3 days
Volume shrinkage0-5%
Movement capability25%
Shelf-life after production12 months (at 20°C in a dry place)

CP 606 Firestop acrylic sealant


AttributeValue
CertificateBritish Standard, pr EN 1366-3, FM Approved, UL Listed, LPCB certified
Skin-forming timeApprox. 20 min.
Curing rateApprox. 3 mm in 3 days
Volume shrinkageApprox. 20%
Movement capability33%
Shelf-life after production24 months (at 20°C in a dry place)

Firestop Putty Pad CFS-P PA


AttributeValue
CertificateBritish Standard, pr EN 1366-3, FM Approved, UL Listed, LPCB certified
Dimensions (LxWxH)
  • 6″ x 7″ x 3/16″
  • 7-1/4″ x 7-1/4″ x 3/16″
  • 9-1/4″ x 9-1/4″ x 3/16″
ConsistencyMoldable putty
ColorRed
Application temperature40°F (5°C) to 95°F (35°C)
Storage temperature40°F (5°C) to 104°F (40°C)
Curing timeNon-curing
Density1.48 g/cm³
Intumescent activationApprox. 220°F to 250°F (104°C to 121°C)
Volatile solventsNone
Asbestos fibersNone
Surface burning characteristics (ASTM E 84-96)Flame Spread: 15, Smoke development: 10
Sound transmission classification (ASTM E 90-97)59 (Relates to specific construction)
Tested in accordance withUL 263, ASTM E 84, ASTM G21

CP 679A Plus fire protection cable coating


AttributeValue
CertificateN/A
Chemical basisAcrylate
Weight20 kg
Application temperature range5-40 °C
Temperature resistance range-30-80 °C
Storage and transportation temperature range5-30 °C
Shelf life18 Months
ColourWhite

CP 678 Firestop cable coating


AttributeValue
CertificateIEC 60332, IBMB & FM Approved
Chemical basisAcrylate
Weight20 kg
Application temperature range5-40 °C
Temperature resistance range-30-80 °C
Storage and transportation temperature range5-30 °C
Shelf Life18 Months
ColourWhite

CP- 506 Smoke and acoustic sealant


AttributeValue
CertificateN/A
ColorWhite
Chemical basisAcrylic
Storage and transport temperature range40°F to 77°F (5°C to 25°C)
Curing time (73°F / 50% relative humidity)Approx. 3 mm/3 days
Skin-forming time (73°F / 50% relative humidity)Approx. 15 min
Application temperature range35°F to 104°F (1.5°C to 40°C)
Shelf life24 months from date of manufacture
Sound transmission classification (ASTM E 90)STC 63 (per tested construction type)
Movement capability (ISO 11600)Approx. 12.5%
Mold and mildew (ASTM G 21)Mold resistant
Surface burning characteristics (ASTM E 84-08)Flame spread: 10, Smoke development: 10
Surface burning characteristics (CAN/ULC-S102)Flame spread: 15, Smoke development: 5
Air leakage (Modified UL 2079 L-Rating)

L-Rating at Ambient: Less than 1 CFM/Lin Ft.

L-Rating at 400°F: Less than 1 CFM/Lin Ft.

Firestop cable coating CP 679 A


AttributeValue
CertificateIEC 60332, IBMB, FM Approved, ABS Approval, DNV
ColorWhite
Pail content20 kg
Application temperature+5°C to +40°C
Shelf life (stored dry and free from frost)12 months
Density uncuredApprox. 1.35 g/cm³
ConsistencyCan be applied by paint brush, roller, or spray
Touch dry6 hours
Full cure24 hours
As per IEC 332

Dft of Coating = 1 mm

For flat surface – consumption = 1.7 kg/m²

For cable bundles – consumption = 2.5 kg/m²


Insulating and Filling Foam


AttributeValue
CertificateN/A
Chemical basis1C Polyurethane foam
Contents of foam (quantity filled)750 ml
Foam yield (freely foamed)Up to 65 L
Curing: non-tacky afterApprox. 9 min
Ready to cut afterApprox. 20 min
Load bearing afterApprox. 3-5 hrs
Temperature resistance of cured foam-40°C to 90°C
Storage and transportation temperature+5°C to 25°C
Building Materials Class (as per DIN 4102)B2
Shelf life after production12 Months
