Process Line Accessories

We offer a complete range of solution for Process Line . From Butterfly valves to complex process piping , our dedicated team will provide you the products you need .

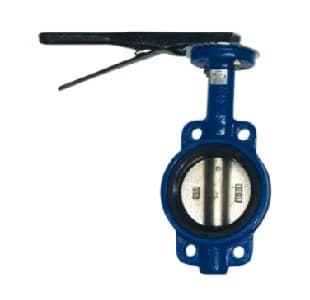

Wafer Butterfly Valve

• Water supply
• Waste water treatment plants
• Fire fighting systems
• Power plants
• Industry
• Drinking water
• Irrigation
• Heating – conditioning systems
• * available disc in stainless steel (fig 1401) for salty water

Cast Iron Gate Valve

Diameter: DN50-300

Pressure: PN1.0 / 1.6mpa

Temperature: ≦150 ℃

Medium: Water, Oil.

Body material: Cast Iron

Connection: Flange

Stainless Steel Knife Gate Valve



Temp:≤150 ℃



Connection Type:Wafer

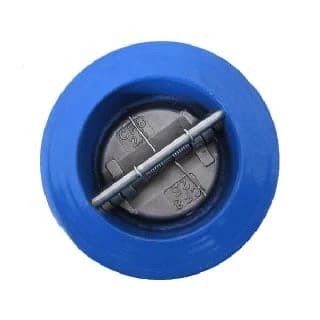

Cast Iron Butterfly Check Valve

Size Range: 2~24″(DN50~DN600)
Pressure: PN10, PN16, Class125
Body Materials: Cast Iron, Ductile Iron , WCB , Stainless Steel, Bronze
Seat Materials: NBR, EPDM
Disc Materials: Ductile Iron, WCB, CF8,CF8M, Al-bronze C958
Stem Materials: SS416, SS304, SS316

 Foot Valve

Size Range: 2~20″(DN50~DN500)

Pressure: PN2.5 ,PN6 ,PN10,150LB

Body Materials: Cast Iron, Ductile Iron, WCB , Stainless Steel

Seat Materials: NBR, EPDM, VITON

End Connection: Flange

Y Strainer

Diameter: DN50-300

Pressure: PN1.0 / 1.6mpa

Temperature: -29℃-200 ℃

Medium: Water, Oil,

Body material: cast iron,ductile iron

Connection: Flange

Air Release Valve

Nominal pressure: PN1.0—1.6Mpa
DN: DN25—DN50mm
Body material:  cast iron, ductile iron
Flange connection: DIN PN10.PN16, ANSI150,BS4504
Basket: POLY
Temperature: -20℃—120℃

Electromagnetic Flowmeter

Model: DN15-3000,KDLD

The highest velocity:15m/s

Precision:±0.3% 、±0.5%

Power supply:85–265V ,45–400Hz

Lining material:Ptfe, polyurethane rubber, neoprene, polypropylene

Electrode materials:Stainless steel, hartz alloy, titanium, tantalum, platinum-iridium alloy, carbonized

TungstenPressure: 0.6MPa-4.0MPa


Protection grade:IP65,IP67,IP68

Temperature: water, oil,Chemical medium

Connection: flange
