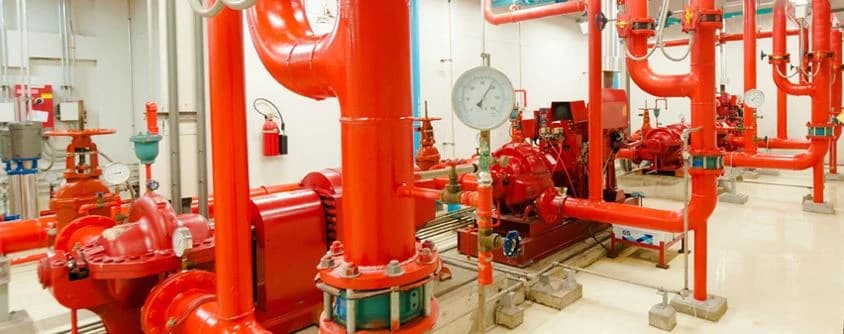

Fire pump is a part of fire sprinkler system’s water supply. When the pressure in sprinkler system risers and standpipes drops below a threshold, fire pump starts to provide water flow at a higher pressure.
Powered by electric motor or diesel engine, fire pump contains below 4 main types: horizontal split case fire pump, end suction fire pump, vertical in-line fire pump, and vertical turbine fire pump. They are centrifugal pumps with high efficiency at transferring water over a wide range of flow and pressure. A Jockey pump is a small multistage centrifugal pump connected to a branch fire pipeline to maintain system pressure to a high level.
Complaince BD supplies fire pump in UL Listed / FM Approved and Jockey pump in CE approved.

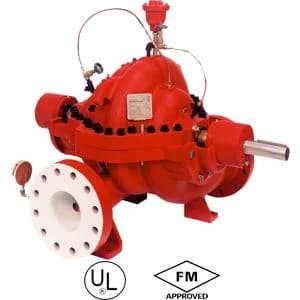

Horizontal split case fire pump
- Certificate: UL Listed/ FM Approved
- Standard: NFPA20
- Diesel drive: Clarke engine (UL+FM)/ NM
- Motor drive: WEG/ Top (UL)
- Controller: Firetrol/ Tornatech/ Eaton (UL+FM)
- Flow: 500 to 5000 gpm
- Head: 40 to 422 PSI
- Ref. No.: U01

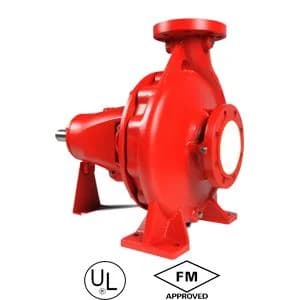

End suction fire pump
- Certificate: UL Listed/ FM Approved
- Standard: NFPA20
- Diesel drive: Clarke engine (UL+FM)/ NM
- Motor drive: WEG/ Top (UL)
- Controller: Firetrol/ Tornatech/ Eaton (UL+FM)
- Flow: 150 to 750 gpm
- Head: 40 to 151 psi
- Ref. No.: U02

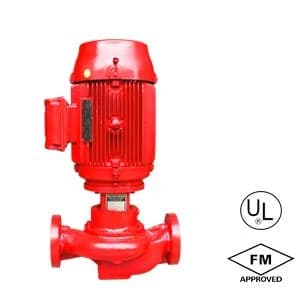

Vertical in-line fire pump
- Certificate: UL Listed/ FM Approved
- Standard: NFPA20
- Motor drive: WEG/ Top (UL)
- Controller: Firetrol/ Tornatech/ Eaton (UL+FM)
- Flow: 150 to 1000 gpm
- Head: 40 to 150 psi
- Ref. No.: U03

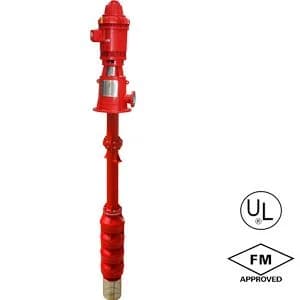

Vertical turbine fire pump
- Certificate: UL Listed/ FM Approved
- Standard: NFPA20
- Diesel drive: Clarke engine (UL+FM)/ NM
- Motor drive: WEG/ Top (UL)
- Controller: Firetrol/ Tornatech/ Eaton (UL+FM)
- Flow: 500 to 5000 gpm
- Head: 43 to 403 psi
- Ref. No.: U04

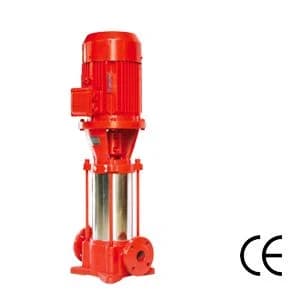

Jockey pump
- Certificate: CE
- Standard: NFPA20
- Motor: DC, 50Hz, with IP55 protection
- Controller: Firetrol/ Tornatech/ Eaton (UL+FM)
- Temperature: Medium, -20°C to 140°C
- Flow: 1 to 154 gpm
- Head: Max 360 psi
- Ref. No.: U05
