VALVES & ACCESSORIES

Complianec BD is the leading supplier of UL certified valves and risers for Bangladesh Market. We supply landing valves, breeching inlets and angle hose valves. All of our products are suitable for a range application and will play an important role in your fire defense.

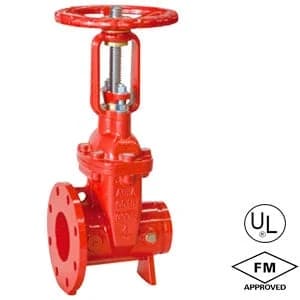

icon f OS&Y Gate Valve (Flanged, Grooved etc)


  • Certificate: UL Listed/ FM Approved
  • Standard: BS 5163
    UL 262/ AWWA C515
  • Connection: Flanged as BS EN 1092-2 + Grooved as ISO 6182/ Flanged as ASME B16.1 + Grooved as AWWA C606
  • Temperature: 0°C to 100°C
  • W. pressure: PN 16/ 300 psi (2.07 Mpa)
  • Surface: FBE coating as AWWA C550

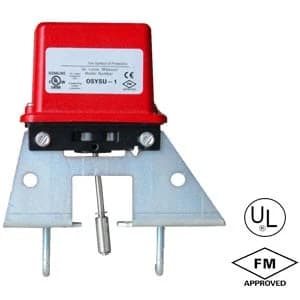

icon f Supervisory/ Tamper Switch


  • Certificate: UL Listed/ FM Approved/ CE
  • Cover: Die-casting aluminium as ASTM B85
  • Connection plate: Mild steel/ SS
  • Trip rod: SS304/ SS316
  • Temperature: -40°C to 60°C
  • Surface: Corrosion resistant coating
  • Enclosure: IP 65 and IP 67

icon f Swing Check /Non-Return Valve


  • Certificate: UL Listed/ FM Approved
  • Standard: EN 1074-3
    UL 312/ AWWA C508
  • Connection: Flanged as BS EN 1092-2/ Flanged as ASME B16.1
  • Temperature: 0°C to 100°C
  • W. pressure: PN 16/ 300 psi (2.07 Mpa )
  • Surface: FBE coating as AWWA C550

icon f Butterfly valve with Supervisory Option


  • Certificate: UL Listed/ FM Approved
  • Standard: EN 593/ BS 5155
    UL 1091/ MSS SP-67
  • Top flanged: ISO 5211
  • Indicator: Flag type position indicator
  • Temperature: 0°C to 100°C
  • W. pressure: PN 16/ 300 psi (2.07 MPa)
  • Surface: FBE coating as AWWA C550

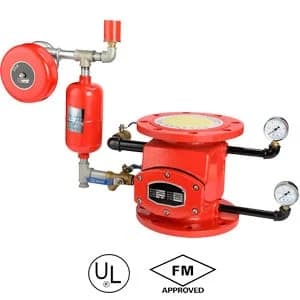

icon f Alarm Check Valve Assembly


  • Certificate: UL Listed/ FM Approved
  • Standard: ANSI/ UL 193
  • Connection: Flanged as ANSI B16.1/ EN 1092-2
  • Installation: Vertical
  • Test: Factory hydro test 350 psi (2.4 MPa)
  • Temperature: 4°C to 70°C
  • W. pressure: 175/ 300 psi (1.21/ 2.07 MPa)
  • Surface: FBE coating as AWWA C550

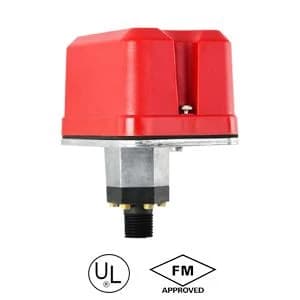

icon f Pressure Switch


  • Certificate: UL Listed/ FM Approved
  • Standard: UL 753/ FM3132
  • Size: 130 x 84 x 108mm
  • Connection: 1/2″ NPT male
  • Temperature: -40°C to 71°C
  • Enclosure: Rated UL 4X/ NEMA 4 (IP54)

icon f Deluge valve


  • Certificate: UL Listed
  • Standard: ANSI/ UL 193
  • Connection: Flanged as ANSI B16.1/ EN 1092-2
  • Installation: Horizontal/ Vertical
  • Test: Factory hydro test 350 psi (2.4 MPa)
  • Temperature: 0°C to 68°C
  • W. pressure: 300 psi (2.07 MPa)
  • Surface: FBE coating as AWWA C550

icon f Y Strainer


  • Certificate: UL Listed
  • Standard: UL Subject 321
  • Screen: Standard perforation
  • Seat: Recessed seat for screen alignment
  • Connection: Flanged as EN 1092-2/ Flanged as ANSI B16.1
  • Temperature: 0°C to 100°C
  • W. pressure: PN 16/ 300 psi (2.07 Mpa)
  • Surface: FBE coating as AWWA C550

icon f Fire Pump Flowmeter


  • Certificate: FM/ LPCB Approved
  • Size: 2″ to 8″
  • Connection: Wafer flange/ grooved
  • Scale: Both US gpm and dm3/ min
  • Accuracy: ±2%
  • Installation: Horizontal/ vertical
  • W. pressure: 290 psi (2.0 MPa)

icon f Air release valve


  • Certificate: UL Listed/ FM Approved
  • Standard: UL Subject 2573
  • Connection: NPT/ BSPT
  • Temperature: 0°C to 90°C
  • Surface: FBE coating as AWWA C550

icon f Brass Ball Valve


  • Certificate: UL Listed
  • Standard: MSS SP-110, NSF/ ANSI 61
  • Connection: Female thread, NPT/ BSPT
  • Hydro test: Shell 900 psi/ Seat 660 psi
  • Air test: Min 80 psi
  • Temperature: -30°C to 120°C
  • W. pressure: Class 150: WOG 600 psi & SWP 150 psi
  • Surface: Rough brass

icon f Test and drain valve


  • Certificate: UL Listed/ FM Approved
  • Standard: UL Subject 258
  • Connection: Female thread, NPT or BSPT/ grooved
  • Hydro test: 350 psi
  • Temperature: 0°C to 100°C
  • W. pressure: 175 psi
  • Surface: Rough brass

icon f Waterflow indicator


  • Certificate: UL Listed/ FM Approved
  • Standard: ANSI/ UL 346
  • Sensitivity:Flow rate 4-10 US GPM
  • Contact ratings: 8A at 125/250 VAC, 3A at 24VDC, 2.5A at 30VDC
  • Maximum surge: 18 feet per second (FPS)
  • Temperature: 0°C to 68°C
  • W. pressure: 450 psi
  • Surface: FBE coating as AWWA C550
  • Ref. No.: V38

icon f Pressure gauge


  • Certificate: UL Listed/ FM Approved
  • Standard: UL 393/ ASME B40.100
  • Dial diameter: 3.5″ (90mm)
  • Connection: 1/4″ NPT
  • Full scale value: 300 psi
  • W. pressure: Max 75% of full scale value
  • Accuracy: 3% – 2% – 3% as ASME Gr. B
  • Temperature: -40°C to 65°C
  • Enclosure: IP 52

icon f Pressure Reducing Valve


  • Certificate: UL Listed/ FM Approved
  • Standard: ANSI/ UL 1468
  • Connection: Flanged as ANSI B16.42
  • Pres. adjustment: 30 ~ 165 psi.
  • Pres. differential: Min 10 psi
  • Temperature: Water, max 82°C
  • W. pressure: Class 150/ class 300
  • Surface: FBE coating as AWWA C550

icon f Foot valve


  • Certificate: ISO
  • Connection: Flanged as ANSI B16.5/ EN 1092-2
  • Test: 348/ 544 psi (2.4/ 3.75 Mpa)
  • Temperature: EPDM, -20°C to 110°C/ NBR, -10°C to 80°C
  • Surface: Green/ blue painting
  • Model: U14

icon f Waste cone


  • Certificate: ISO/BS
  • Standard: NFPA 20
  • Connection: Flanged as ANSI B16.5/ EN 1092-2
  • Body: Single body casting as DI
  • Sight glass: 2 x SS316
  • Surface: FBE coating as AWWA C550

icon f Anti-Vortex Plate


  • Certificate: ISO
  • Standard: EN 12845
  • Connection: Flanged as ANSI B16.5/ EN 1092-2
  • Material: SS304
  • Temperature: 0°C to 120°C
  • Surface: Rough SS/ red painting
