Complaince BD is a reliable supplier of comprehensive fire protection system solution around the world. We provide a complete range of fire products for one-stop solution to optimize customers demand and lower customers cost, including fire sprinkler system , fire hydrant system , fire alarm system , and fire suppression system .
With world-class manufacturers, globe certificates approval ( UL , FM, LPCB, BSI, VdS, etc.), warehouses close to seaport, customers from over 30 countries benefit from our quality-based product, fast scheduling and competitive price.

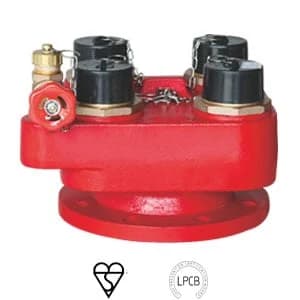

Fire Department Connection(4 Way)
Certificate: BSI/ LPCB Approved
Standard: BS 5041-3
Inlet: 4 x BS336 (4 x 2.5″ BSP)
Outlet: Flanged as EN 1092-2, DN150 with PN16
Test: Factory hydro test 30 bar
Temperature: 0°C to 38°C
Surface: FBE coating as AWWA C550

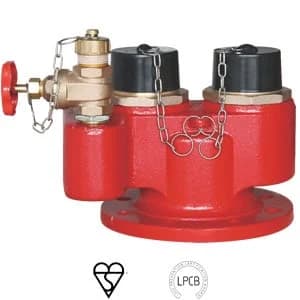

Fire Department Connection(2 Way)
Certificate: BSI/ LPCB Approved
Standard: BS 5041-3
Inlet: 2 x BS336 (2 x 2.5″ BSP)
Outlet: Flanged as EN 1092-2, DN100 with PN16
Test: Factory hydro test 30 bar
Temperature: 0°C to 38°C
Surface: FBE coating as AWWA C550

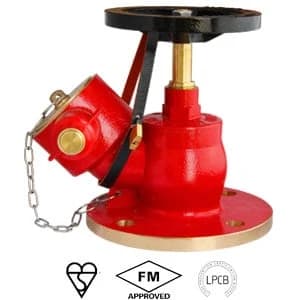

Landing valve(Class I Connection)
Certificate: BSI/ FM/ LPCB Approved
Standard: BS 5041-1
Body: Copper alloy, T≥3mm
Handwheel: Cast iron/ aluminium alloy
Blank cap: Copper alloy/ plastic
Chain: SS304
Test: 22.5 bar
Surface: Rough copper/ red or yellow paint

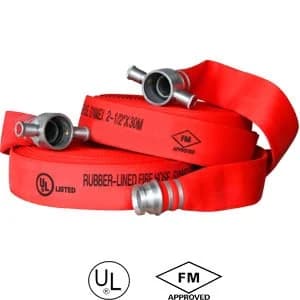

Fire Fighting Hose
Certificate: UL Listed/ FM Approved
Standard: ANSI/ UL 219, BS 6391
Lined layer: EPDM/ PU
Jacket: Single (14 bar)/ double (20 bar)
Weave: Twill weave/ plain weave
Coupling: 2 x Aluminium BS336
Length: 15m ~ 30m/ Customized
Color: White/ red
Fire Hose Rack Cabinet
Certificate: BS
Capacity: Standard fire hose rack assembly Or adding landing valve x 1
Mounting: Wall/ recessed/ semi-recessed
Size: Compact size/ customized
Door: Single or double doors (open 170°)
Surface: Red epoxy powder coating (steel) Bright finish (SS or AL)
Pillar Hydrant Cabinet (Self-Standing)
Certificate: BS
Capacity: Standard fire hose + accessories
Mounting: Self-stand (floor mount)
Size: Compact size/ customized
Door: Single door (open 170°)
Surface: Red epoxy powder coating (steel) Bright finish (SS or AL)
Pendent Sprinkler (Standard Response)
Certificate: UL Listed/ FM Approved
Standard: ANSI/ UL 199
K factor: K 5.6, K 8.0
Response: Standard with 5 mm glass bulb
Escutcheon: Recessed escutcheon
Thread: NPT/ BSPT
W. pressure: 175 psi (1.21 MPa)
Finish: Rough brass/ chrome plated/ white
Pendent Sprinkler (Quick Response)
Certificate: UL Listed/ FM Approved
Standard: ANSI/ UL 199
K factor: K 5.6, K 8.0
Response: Standard with 3 mm glass bulb
Escutcheon: Recessed escutcheon
Thread: NPT/ BSPT
W. pressure: 175 psi (1.21 MPa)
Finish: Rough brass/ chrome plated/ white
Upright Sprinkler (Standard Response)
Certificate: UL Listed/ FM Approved
Standard: ANSI/ UL 199
K factor: K 5.6, K 8.0
Response: Standard with 5 mm glass bulb
Escutcheon: Recessed escutcheon
Thread: NPT/ BSPT
W. pressure: 175 psi (1.21 MPa)
Finish: Rough brass/ chrome plated/ white
Pendent Sprinkler (Quick Response)
Certificate: UL Listed/ FM Approved
Standard: ANSI/ UL 199
K factor: K 5.6, K 8.0
Response: Quick with 3 mm glass bulb
Thread: NPT/ BSPT
W. pressure: 175PSI (1.2Mpa)
Finish: Rough brass/ chrome plated/ white
Braided Flexible Sprinkler Hose
Certificate: UL Listed/ FM Approved
Standard: UL 2443
Hose diameter: O.D. 27mm, with flow 21.0mm
Inlet: 1″ NPT or BSPT male thread
Outlet: NPT or BSPT female thread
W. pressure: 175 psi (1.21 MPa)
Temperature: Max ambient 107°C
Unbraided Flexible Sprinkler Hose
Certificate: UL Listed
Standard: UL 2443
Hose diameter: O.D. 27mm, with flow 22mm
Inlet: 1″ NPT or BSPT male thread
Outlet: NPT or BSPT female thread
W. pressure: 175 psi (1.21 MPa)
Temperature: Max ambient 107°C
Sprinkler Escutcheon
Certificate: UL Listed/ FM Approved
Thread: NPT/ BSPT
Type: One-piece/ two-pieces
Closure: Carbon steel/ SS (two-piece)
Mounting plate: Carbon steel/ SS
Finish: Chrome plated/ white painting/ Brass
Sprinkler Guard
Certificate: UL Listed/ FM Approved
Type: Non shield/ shield with screw
Base plate: Carbon steel
Guard bar: Carbon steel
Finish: Red painted/ zinc chromate
Sprinkler Head Wrench
Certificate: ISO
Connection: 1/2″ ~ 1″ (DN15 ~ DN25)
Application: Standard sprinkler/ ESFR sprinkler Recessed sprinkler/ concealed sprinkler
Material: Carbon steel
Finish: Zinc/ chromed coated
Sprinkler cabinet
Certificate: ISO
Capacity: From 3pcs to 12pcs sprinkler head
Body: Heavy gauge carbon steel
Mounting: Wall mounting/ strap-type hanger
Finish: Red painted
Ref. No.: S20
